io-NanoFloat ®
Revolutionizing
wastewater treatment
Innovative integration of proven water treatment methods
Introducing io-NanoFloat ®, a groundbreaking system that seamlessly blends three time tested water treatment techniques into a single, harmoniously functioning unit. io-NanoFloat ® is not just a merger, of traditional technologies. It is a reinvention of Coagulation, Flotation, and Electrocoagulation (followed by flotation), designed with contemporary challenges in mind. This fusion leads to an exceptionally effective water treatment proces
Flotation technology: Enhanced and refined
Discover the future of water treatment with our revolutionary product, expertly crafted for optimal performance. We have reimagined the traditional rectangular dissolved air flotation system . We are introducing an innovative circular design that significantly enhances water flow, floc separation, with a defined separation layer. This advanced design is complemented by an integrated mixing chamber, where wastewater seamlessly interact with micro and nano bubbles.
This creates an ideal separation layer allowing for very high discharge efficiency. Further elevating innovation, we have an integrated nano bubble production technology, equipped with a built-in sensor, allowing our system to measure nano bubble production, thus ensuring precision and bubble effectiveness. Io-Nanoflot ® sees a very positive interaction of negative charged nana bubbles with the electrocoagulation unit.
io-NanoFloat ®

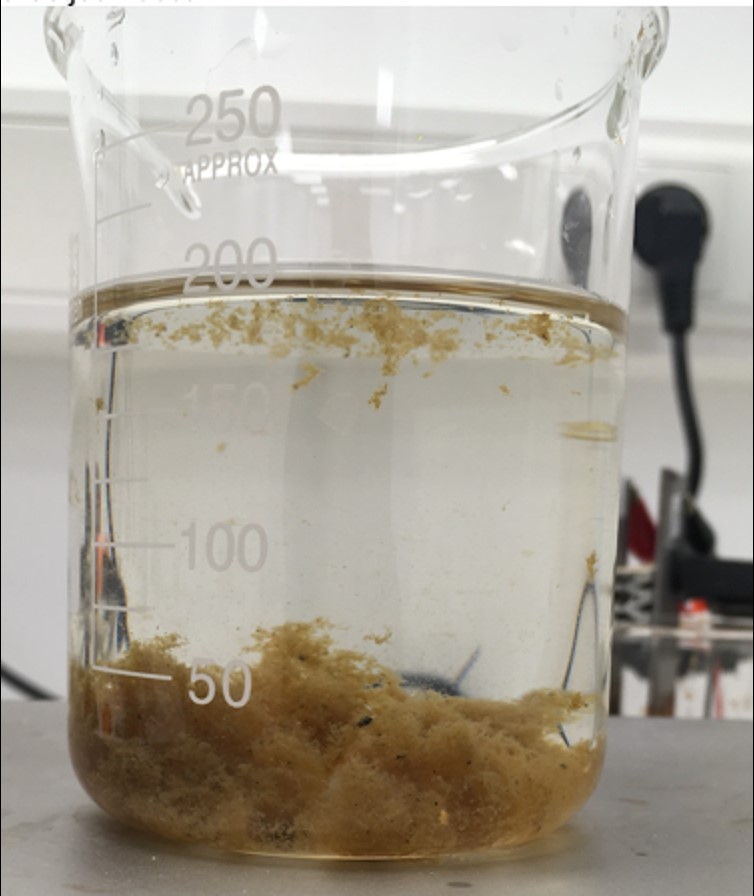

Electrocoagulation: Smart and efficient
Experience cutting-edge wastewater treatment with our e-box technology, featuring a groundbreaking Pole Reversal System. This system smartly alternates between positive and negative poles, eliminating the need for soluble metals and significantly reducing electro replacement. Additionally, our e-box is powered by adaptive algorithms that automatically adjust voltage and current based on the wastewater's redox potential. This ensures peak performance and optimal treatment results. Efficient, low-maintenance, and smart. The future of wastewater management is here.
System performance
By integrating nano flotation and electrocoagulation, our integrated process achieves a purification efficiency beyond 95%, a remarkably high rate for a flotation-based wastewater treatment system.
| Item | Value% |
| maximum Chemical Oxygen Demand (COD) removal | 95% |
| maximum Biochemical oxygen demand (BOD) removal | 80% |
| maximum Phosphorus (P) removal | 95% |
| maximum Total suspended solids (TSS) removal | 95% |

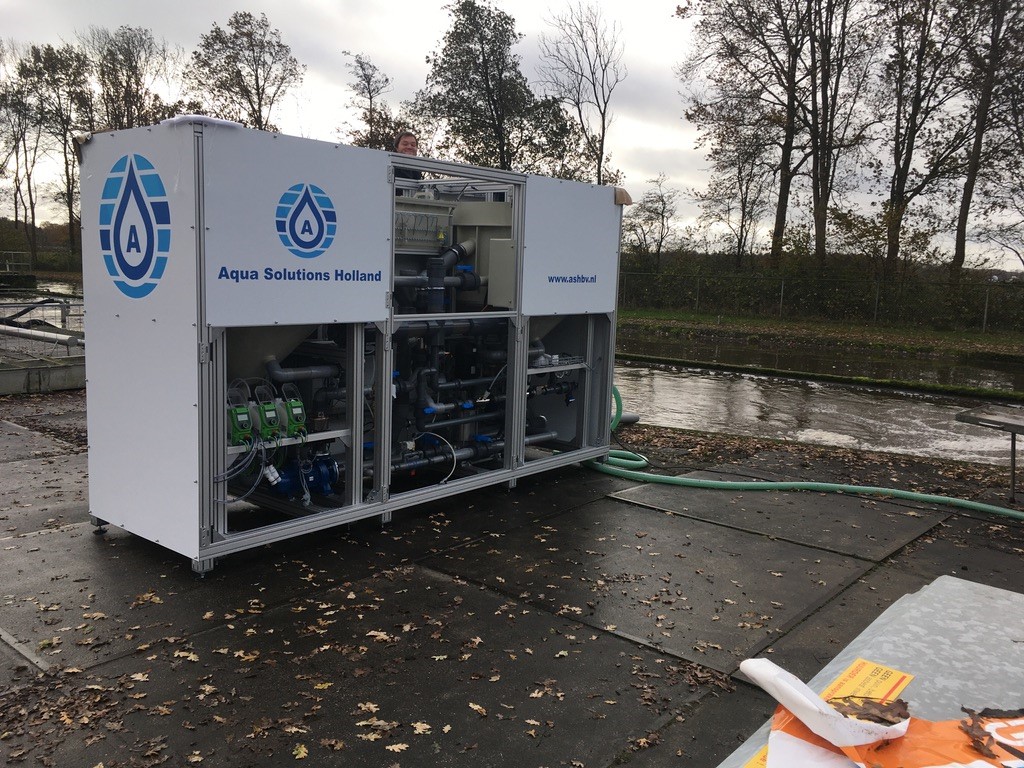

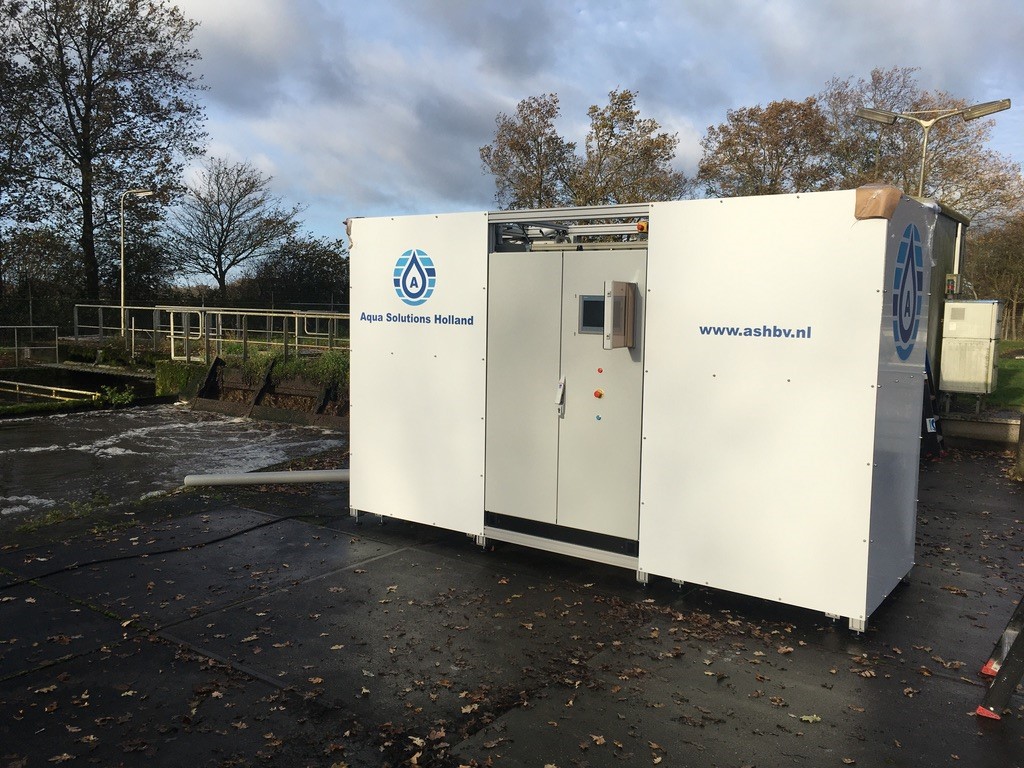

Project Marum
Operation and maintenance: Autonomous and user friendly
Discover easy and efficiency of use with this self-adjusting system that characterizes modern wastewater treatment technology. It is designed to autonomously adjust and maintain its settings using live measurements. In this way, your operations run smoothly and optimally around the clock. But that's not all. You have the power of remote control and monitoring at your fingertips. Whether using a laptop, PC, or smartphone, you can manually control the system from anywhere in the world. For peace of mind, our dedicated team in Assen, the Netherlands, provides 24/7 live support.
Capacity: Flexible and scalable

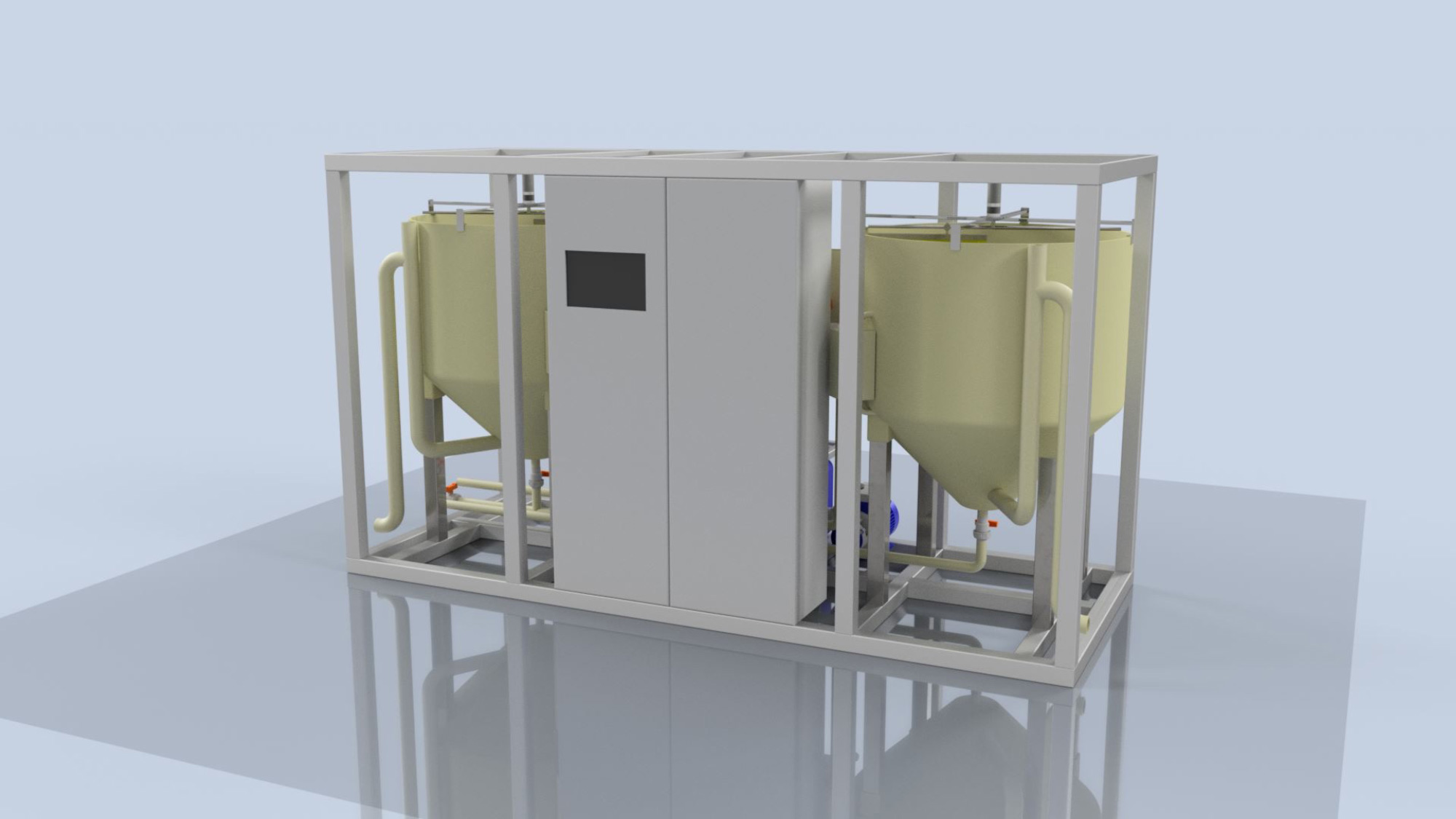

io-NanoFloat ® boasts a modular design, available in models handling 10m³/hr to 30m³/hr. Scaling up is modular. Simply add more modules following an easy "Lego principle." Even the powerful 30m³/hr model impresses with its compact footprint, measuring just 6x2.4x3 meters (LxWxH). This blend of adaptability and space efficiency makes io-NanoFloat ® a versatile solution for any scale of wastewater treatment.
Energy and chemical efficiency
The io-NanoFloa ® system sets a new standard in energy efficiency, foregoing high-energy components like aeration systems and biological treatment. As a result, it possesses an impressively low average energy consumption of just 400W (0.4 kWh) per cubic meter of treated water. This efficiency translates into a rapid return on investment, with most users seeing ROI within a year. More over, the combination of nanobubbles and electro coagulation seriously reduces the flocculant metal salt required In most other flotation technology. In some cases the electro coagulation can eliminate the addition of metal salts.
